Progress Update on Modern Home in the Mountains

by EVstudio AEP on June 10, 2016

One of the greatest parts of being an architect or engineer is seeing a building come out of the ground. I recently toured a modern home project of ours which is under construction.

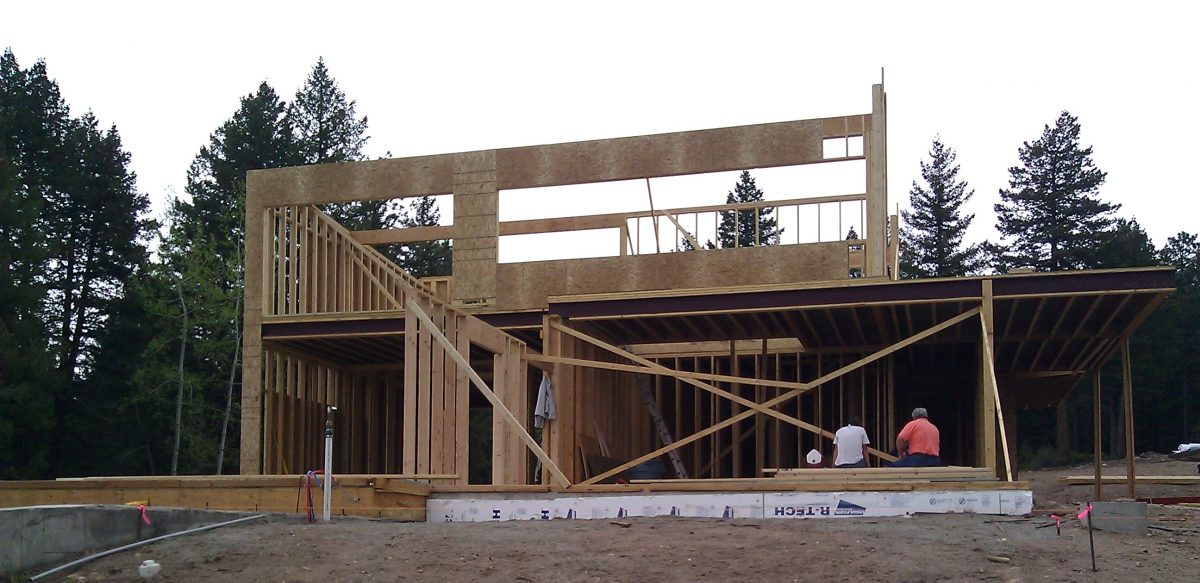

View of great room and patio from the southwest

View of great room and patio from the southwest

This view is from the southwest corner of the home. The main things we see here are the upper level wall and floor framing. The bracing to the right of the gentleman in the salmon colored shirt is where a 12×78 W-shape now extends towards the west and the viewers eye. That beam has a 10′ cantilever parallel to its length and also supports 6′ cantilever perpendicular to it. That beam is in place now so check back for a picture of it.

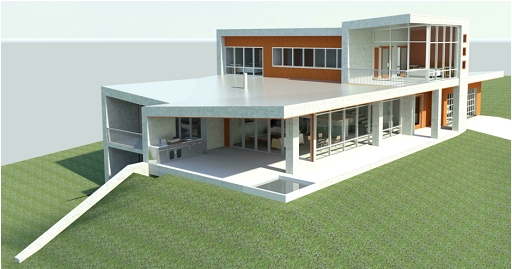

Southwest conceptual image

Southwest conceptual image

Originally posted 2012-05-11 00:05:21. Republished by Blog Post Promoter
