From Design to Dirt: How Clear Retaining Wall Drawings Keep Projects Moving

A retaining wall project can look straightforward on paper. The engineer designs the wall, the drafter draws the plans, and the crew gets ready to build.

Then something doesn’t line up.

A plan reviewer catches stationing that doesn’t match the civil plans. A contractor finds wall elevations that don’t match what they’re seeing in the field. A drainage line conflicts with the wall. Or the plans turn out to reference an older set of civil drawings.

None of that means someone engineered the wall poorly. Often, the information simply didn’t get communicated or coordinated clearly.

An engineered retaining wall is more than a row of blocks holding back soil. Depending on the project, it pulls in structural design, grading, drainage, utilities, foundations, property lines, easements, and site conditions. All of those pieces have to work together.

Retaining wall drawings are where that information comes together. Their job is to take the engineer’s design and communicate it to the people who review and build it — to move a project from design to dirt.

Before the Wall Is Drawn

When we start preparing retaining wall drawings, one of the first things we study is everything around the wall.

How far does the wall sit from the property line? Do easements run nearby? Do storm or sewer lines pass through or near it? Where are the roads, sidewalks, parking areas, and buildings?

Buildings add another layer of coordination. If a foundation sits close enough to affect the wall, we need its type and depth. Construction timing matters too, because a foundation or storm line installed without considering the wall creates problems later.

Soil information matters just as much. The engineer needs the right soil properties to design the wall for the conditions it will actually see.

None of this is unique to the drawing process. It’s part of good retaining wall design and multi-disciplinary coordination.

For the person preparing the construction documents, though, the question narrows to one thing. How do we communicate all of this clearly?

Translating Engineering into Construction Documents

I’ve never really thought of my job as creating drawings. I think of it as interpreting the engineer’s design and relaying it to the builder in a form they can use.

That takes judgment.

A good plan has everything the builder needs and nothing it doesn’t.

Retaining wall projects carry a lot of information. The real work is deciding what to show, where to show it, and how much detail the situation calls for.

Wall profiles are a good example. They may need top-of-wall and bottom-of-wall elevations at different stations. If the wall steps frequently, though, labeling every step turns the profile into noise. In that case, marking the beginning and end of a series of steps communicates the design better than a stack of overlapping labels.

The same principle governs wall details. Details need to match the actual conditions and the block type in use. If different walls use different block types, the plan has to make that obvious.

The goal isn’t to fit as much information as possible on the page. The goal is to make the right information easy to find.

When Retaining Wall Drawings Meet the Building Department

Clear communication pays off long before construction reaches the field.

Recently, one of our retaining wall projects came back with a comment on the beginning-of-wall station. Our plans showed the wall starting at one station. The civil plan showed another.

At first it looked like we’d missed something.

A closer look told a different story. The civil plans themselves showed two different stations — one in the plan view, another in the wall profile.

Nothing was missing. The information contradicted itself.

That distinction matters. A drawing can carry every necessary number and still create confusion when those numbers disagree between views or between disciplines.

No project escapes plan review comments entirely. Clear, coordinated construction documents do reduce the avoidable ones, and they make the design faster to review.

From the Drawing to the Field

Eventually the plans leave the office and become a construction tool. That’s where the quality of the communication really gets tested.

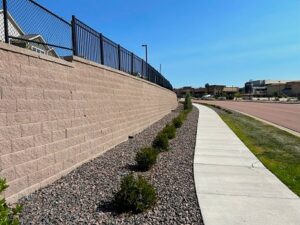

A retaining wall ends up as part of the surrounding site, not a line on a page. So a contractor should be able to look at the plan and recognize what’s in front of them. The profile should make sense with the grading. Elevations should match expected conditions. Details should apply to the wall they’re actually building.

We’ve also seen plans that carry some of the necessary information but not enough of it.

On one project, the civil plans gave top-of-wall and bottom-of-wall elevations at key locations and very little between those points. We built our wall profiles from what we had.

Once construction started, the contractor sent redlines showing different elevations at specific stations. They had information we’d never received. The additional elevations existed in the original civil CAD files, but nobody had passed those files along.

The fix took multiple emails, revisions, and a round of coordination before the contractor had what they needed.

There’s a fine line between too much information and too little. Too much makes a drawing hard to read. Too little leaves the builder guessing. Good construction documents find the balance.

Plans Are a Snapshot in Time

Every project team should understand one more limitation. Plans reflect the information available the day someone prepared them. When that information changes and nobody communicates the change, the drawings can’t follow.

We recently caught a situation where that could have gotten expensive.

We were missing information for several walls, so our team sat down with the retaining wall company to review what we had and identify the gaps. During that meeting, we noticed the builder’s plans didn’t match the plans originally handed to us.

One wall appeared on our plans at a maximum height of a few inches. At that height, it didn’t need the same engineering as the others. The builder’s newer plans showed the same wall reaching roughly three feet.

We caught it before the project moved forward. Otherwise the discrepancy would have surfaced during plan review — or worse, after construction reached that wall, when the project would have needed a newly engineered wall before work could continue.

We’ve run into existing storm lines in the field that never appeared on the plans, and utilities installed with no coordination against the retaining wall. Those situations force changes even when the original drawings were accurate for the information available at the time.

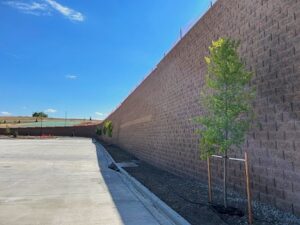

Retaining wall construction almost always has to coordinate with drainage, utilities, grading, and other site improvements. Good documentation can’t prevent every problem. It can surface problems earlier and give the team a better starting point.

Everyone Has a Part to Play

Retaining wall construction involves a lot of moving parts. Civil engineers, structural engineers, architects, contractors, drafters, plan reviewers, and field crews all carry different pieces of it.

Nobody controls every variable.

What each of us controls is the quality of the information we hand off and how well we coordinate with the people who depend on it.

For me, that means looking at a finished retaining wall plan and being able to say: this plan has everything the builder needs and nothing it doesn’t.

Concretely, that means a few things:

• Details that apply to the actual field conditions
• Plan view, profiles, and details that agree with each other
• Different wall systems and block types clearly identified

Then, when the contractor carries the drawings into the field, they can look at the plan and say, “Yes, this matches what we’re seeing.”

That’s not always easy. Every project has variables, and sometimes the information reaching the design team is incomplete or shifts along the way. But when every discipline controls what it can, communicates changes as they happen, and hands clear information to the next person in line, the project moves.

A retaining wall gets built from blocks, soil, drainage material, and reinforcement. Before any of that arrives, though, someone builds the wall on paper.

Good engineering makes the wall work. Good retaining wall drawings help everyone understand how to make that design work in the field.
